TurboSign API Integration

This comprehensive guide walks you through the TurboSign API integration process. Learn how to programmatically upload documents, add recipients, and prepare documents for electronic signatures using our RESTful API.

Overview

The TurboSign API follows a simple 3-step process to prepare documents for electronic signatures:

1. Upload Document - Upload your PDF document to TurboSign
2. Add Recipients - Configure who needs to sign and their signing order
3. Prepare for Signing - Set up signature fields and send for signing

Key Features

• RESTful API: Standard HTTP methods with JSON payloads
• Bearer Token Authentication: Secure API access using JWT tokens
• Multiple Recipients: Support for multiple signers with custom signing order
• Flexible Field Placement: Position signature fields using anchors or coordinates
• Real-time Status Updates: Track document status throughout the signing process
• Webhook Integration: Receive notifications when signing is complete

TLDR; Complete Working Example 🚀

Don't want to read all the details? Here's what you need to know:

Available Field Types

Type	Description	Use Case
signature	Electronic signature field	Legal signatures
initial	Initial field	Document initials, paragraph acknowledgments
date	Date picker field	Signing date, agreement date
full_name	Full name field	Automatically fills signer's complete name
first_name	First name field	Automatically fills signer's first name
last_name	Last name field	Automatically fills signer's last name
title	Title/job title field	Professional title or position
company	Company name field	Organization or company name
email	Email address field	Signer's email address
text	Generic text input field	Custom text, notes, or any other text input

Complete 3-Step Workflow

Loading code examples...

Quick Coordinate Example

If you prefer using exact coordinates instead of text anchors:

// Step 3 payload using coordinates instead of templates
[
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "signature",
    "page": 1,
    "x": 100,
    "y": 200,
    "width": 200,
    "height": 80,
    "pageWidth": 612,
    "pageHeight": 792
  },
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "date",
    "page": 1,
    "x": 350,
    "y": 300,
    "width": 150,
    "height": 30,
    "pageWidth": 612,
    "pageHeight": 792
  }
]

Now that you've seen the whole thing, let's dive into the details...

Prerequisites

Before you begin, ensure you have:

• API Access Token: Bearer token for authentication
• Organization ID: Your organization identifier
• PDF Document: Document ready for signature collection

Getting Your Credentials

1. Login to TurboDocx: Visit https://www.turbodocx.com
2. Navigate to Settings: Access your organization settings

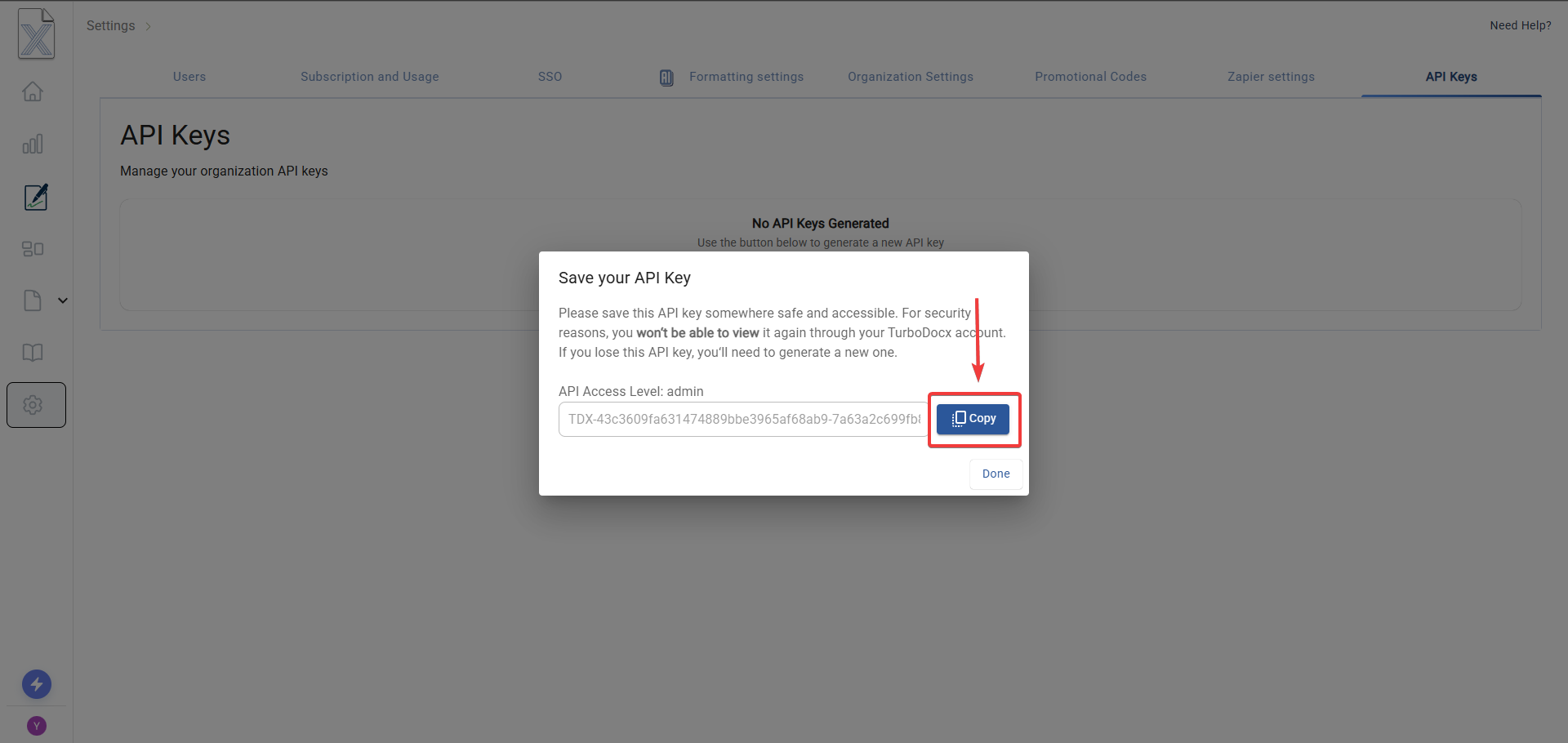

3. API Keys Section: Generate or retrieve your API access token

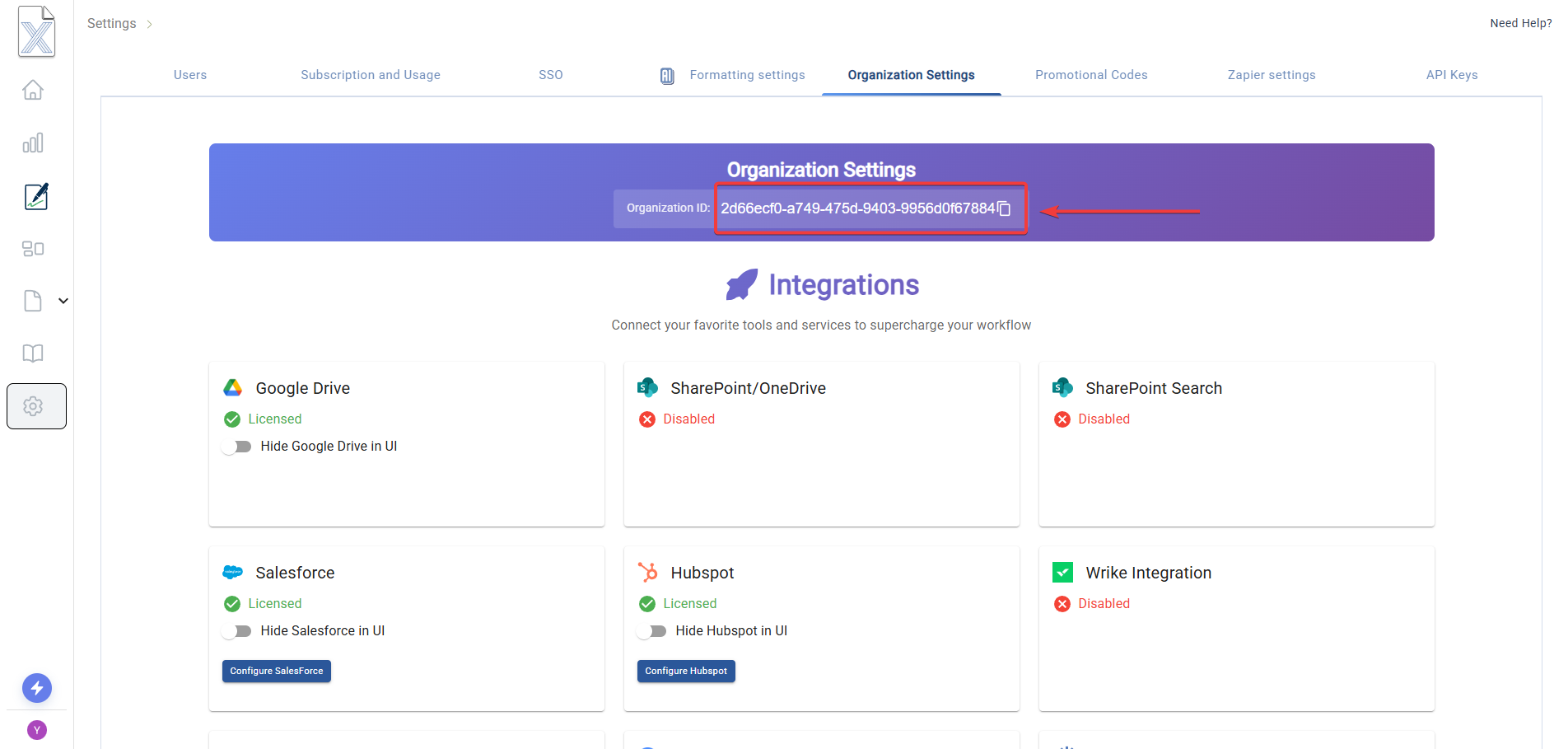

4. Organization ID: Copy your organization ID from the settings

Authentication

All TurboSign API requests require authentication using a Bearer token in the Authorization header:

Authorization: Bearer YOUR_API_TOKEN

Additional required headers for all requests:

x-rapiddocx-org-id: YOUR_ORGANIZATION_ID
User-Agent: TurboDocx API Client

Step 1: Upload Document

The first step is to upload your PDF document to TurboSign. This creates a new document record and returns a document ID that you'll use in subsequent steps.

Endpoint

POST https://www.turbodocx.com/turbosign/documents/upload

Headers

Content-Type: multipart/form-data
Authorization: Bearer YOUR_API_TOKEN
x-rapiddocx-org-id: YOUR_ORGANIZATION_ID
User-Agent: TurboDocx API Client

Request Body (Form Data)

{
  "name": "Contract Agreement",
  "file": [PDF_FILE_BINARY],
  // Optional: triggerMeta for advanced configurations
  // "triggerMeta": "{\"url\": \"callback_url\"}"
}

Response

{
  "data": {
    "id": "4a20eca5-7944-430c-97d5-fcce4be24296",
    "name": "Contract Agreement",
    "description": "",
    "status": "draft",
    "createdOn": "2025-09-17T13:24:57.083Z"
  }
}

Response Fields

Field	Type	Description
data.id	string	Unique document identifier (save this for next steps)
data.name	string	Document name as provided
data.description	string	Document description (empty by default)
data.status	string	Document status (draft after upload)
data.createdOn	string	ISO 8601 timestamp of document creation

Code Examples

Loading code examples...

Step 2: Add Recipients

After uploading your document, add the recipients who need to sign. You can specify multiple recipients with their signing order and customize their signature appearance.

Endpoint

POST https://www.turbodocx.com/turbosign/documents/{documentId}/update-with-recipients

Headers

Content-Type: application/json
Authorization: Bearer YOUR_API_TOKEN
x-rapiddocx-org-id: YOUR_ORGANIZATION_ID
User-Agent: TurboDocx API Client

Request Body

{
  "document": {
    "name": "Contract Agreement - Updated",
    "description": "This document requires electronic signatures from both parties. Please review all content carefully before signing."
  },
  "recipients": [
    {
      "name": "John Smith",
      "email": "john.smith@company.com",
      "signingOrder": 1,
      "metadata": {
        "color": "hsl(200, 75%, 50%)",
        "lightColor": "hsl(200, 75%, 93%)"
      },
      "documentId": "4a20eca5-7944-430c-97d5-fcce4be24296"
    },
    {
      "name": "Jane Doe",
      "email": "jane.doe@partner.com",
      "signingOrder": 2,
      "metadata": {
        "color": "hsl(270, 75%, 50%)",
        "lightColor": "hsl(270, 75%, 93%)"
      },
      "documentId": "4a20eca5-7944-430c-97d5-fcce4be24296"
    }
  ]
}

Response

{
  "data": {
    "document": {
      "id": "4a20eca5-7944-430c-97d5-fcce4be24296",
      "name": "Contract Agreement - Updated",
      "description": "This document requires electronic signatures from both parties. Please review all content carefully before signing.",
      "status": "setup_complete",
      "updatedOn": "2025-09-17T13:26:10.000Z"
    },
    "recipients": [
      {
        "id": "5f673f37-9912-4e72-85aa-8f3649760f6b",
        "name": "John Smith",
        "email": "john.smith@company.com",
        "signingOrder": 1,
        "metadata": {
          "color": "hsl(200, 75%, 50%)",
          "lightColor": "hsl(200, 75%, 93%)"
        }
      },
      {
        "id": "a8b9c1d2-3456-7890-abcd-ef1234567890",
        "name": "Jane Doe",
        "email": "jane.doe@partner.com",
        "signingOrder": 2,
        "metadata": {
          "color": "hsl(270, 75%, 50%)",
          "lightColor": "hsl(270, 75%, 93%)"
        }
      }
    ]
  }
}

Request Fields

Field	Type	Required	Description
document.name	string	Yes	Updated document name
document.description	string	No	Document description for recipients
recipients[].name	string	Yes	Full name of the signer
recipients[].email	string	Yes	Email address for signing notifications
recipients[].signingOrder	number	Yes	Order in which recipients should sign (1, 2, 3...)
recipients[].metadata.color	string	No	Primary color for this recipient's signature fields
recipients[].metadata.lightColor	string	No	Light color variant for highlights
recipients[].documentId	string	Yes	Document ID from Step 1

Code Examples

Loading code examples...

Step 3: Prepare for Signing

The final step configures signature fields and sends the document to recipients for signing. You can position fields using text anchors or absolute coordinates.

Endpoint

POST https://www.turbodocx.com/turbosign/documents/{documentId}/prepare-for-signing

Headers

Content-Type: application/json
Authorization: Bearer YOUR_API_TOKEN
x-rapiddocx-org-id: YOUR_ORGANIZATION_ID
User-Agent: TurboDocx API Client

Request Body

[
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "signature",
    "template": {
      "anchor": "{Signature1}",
      "placement": "replace",
      "size": { "width": 200, "height": 80 },
      "offset": { "x": 0, "y": 0 },
      "caseSensitive": true,
      "useRegex": false
    },
    "defaultValue": "",
    "required": true
  },
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "date",
    "template": {
      "anchor": "{Date1}",
      "placement": "replace",
      "size": { "width": 150, "height": 30 },
      "offset": { "x": 0, "y": 0 },
      "caseSensitive": true,
      "useRegex": false
    },
    "defaultValue": "",
    "required": true
  },
  {
    "recipientId": "a8b9c1d2-3456-7890-abcd-ef1234567890",
    "type": "signature",
    "template": {
      "anchor": "{Signature2}",
      "placement": "replace",
      "size": { "width": 200, "height": 80 },
      "offset": { "x": 0, "y": 0 },
      "caseSensitive": true,
      "useRegex": false
    },
    "defaultValue": "",
    "required": true
  },
  {
    "recipientId": "a8b9c1d2-3456-7890-abcd-ef1234567890",
    "type": "text",
    "template": {
      "anchor": "{Title2}",
      "placement": "replace",
      "size": { "width": 200, "height": 30 },
      "offset": { "x": 0, "y": 0 },
      "caseSensitive": true,
      "useRegex": false
    },
    "defaultValue": "Business Partner",
    "required": false
  }
]

Response

{
  "success": true
}

Field Positioning Options

TurboSign supports two field positioning methods:

1. Template-based positioning (recommended) - Uses text anchors in your PDF
2. Coordinate-based positioning - Uses exact pixel coordinates

Template-based Field Configuration

Field	Type	Required	Description
recipientId	string	Yes	Recipient ID from Step 2
type	string	Yes	Field type - see Available Field Types in TLDR section
template.anchor	string	Yes	Text anchor to find in document (e.g., "{Signature1}")
template.placement	string	Yes	How to place field ("replace", "before", "after")
template.size	object	Yes	Field dimensions (width, height in pixels)
template.offset	object	No	Position offset from anchor (x, y in pixels)
template.caseSensitive	boolean	No	Whether anchor search is case-sensitive
template.useRegex	boolean	No	Whether to treat anchor as regex pattern
defaultValue	string	No	Pre-filled value for the field
required	boolean	No	Whether field must be completed

Coordinate-based Field Configuration

For precise positioning when text anchors aren't suitable, use coordinate-based fields:

[
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "signature",
    "page": 1,
    "x": 100,
    "y": 200,
    "width": 200,
    "height": 80,
    "pageWidth": 612,
    "pageHeight": 792
  },
  {
    "recipientId": "5f673f37-9912-4e72-85aa-8f3649760f6b",
    "type": "date",
    "page": 1,
    "x": 350,
    "y": 200,
    "width": 150,
    "height": 30,
    "pageWidth": 612,
    "pageHeight": 792
  }
]

Field	Type	Required	Description
recipientId	string	Yes	Recipient ID from Step 2
type	string	Yes	Field type - see Available Field Types section
page	number	Yes	Page number (starts at 1)
x	number	Yes	Horizontal position from left edge (pixels)
y	number	Yes	Vertical position from top edge (pixels)
width	number	Yes	Field width in pixels
height	number	Yes	Field height in pixels
pageWidth	number	Yes	Total page width in pixels
pageHeight	number	Yes	Total page height in pixels

Coordinate System Notes:

• Origin (0,0) is at the top-left corner of the page
• Standard US Letter page size is 612 x 792 pixels (8.5" x 11" at 72 DPI)
• Fields cannot extend beyond page boundaries: x + width ≤ pageWidth and y + height ≤ pageHeight
• All coordinate values must be non-negative numbers

When to use coordinate-based positioning:

• Precise pixel-perfect placement needed
• PDF doesn't contain suitable text anchors
• Programmatically generated field positions
• Converting from existing coordinate-based systems

Code Examples

Loading code examples...

Best Practices

Security

• Never expose API tokens: Store tokens securely in environment variables
• Use HTTPS only: All API calls must use HTTPS in production
• Validate inputs: Always validate recipient emails and document names
• Implement rate limiting: Respect API rate limits to avoid throttling

Error Handling

• Check HTTP status codes: Always verify response status before processing
• Handle timeouts: Implement retry logic for network failures
• Log API responses: Keep detailed logs for debugging and monitoring
• Validate responses: Check response structure before accessing data

Performance

• Upload optimization: Compress PDFs when possible to reduce upload time
• Batch operations: Group multiple recipients in single API calls
• Async processing: Use webhooks instead of polling for status updates
• Connection pooling: Reuse HTTP connections for multiple requests

Document Preparation

• Use text anchors: Place anchor text like {Signature1} in your PDFs for precise field positioning
• Consistent naming: Use consistent anchor naming conventions across documents
• Test coordinates: Verify field positions with test documents before production
• Document validation: Ensure PDFs are not password-protected or corrupted

Coordinate-based Positioning Tips

• Measure accurately: Use PDF viewers with coordinate display to find exact positions
• Account for margins: Consider document margins when calculating field positions
• Test on different devices: Verify coordinates work across different PDF viewers
• Use standard page sizes: Stick to common page dimensions (612x792 for US Letter)
• Validate boundaries: Ensure fields don't extend beyond page edges
• Consider scaling: Be aware that different DPI settings may affect coordinates

Error Handling & Troubleshooting

Common HTTP Status Codes

Status Code	Description	Solution
200	Success	Request completed successfully
400	Bad Request	Check request body format and required fields
401	Unauthorized	Verify API token and headers
403	Forbidden	Check organization ID and permissions
404	Not Found	Verify document ID and endpoint URLs
422	Unprocessable Entity	Validate field values and constraints
429	Too Many Requests	Implement rate limiting and retry logic
500	Internal Server Error	Contact support if persistent

Common Issues

Authentication Failures

Symptoms: 401 Unauthorized responses

Solutions:

• Verify API token is correct and not expired
• Check that x-rapiddocx-org-id header matches your organization
• Ensure Bearer token format: Bearer YOUR_TOKEN

Document Upload Failures

Symptoms: Upload returns error or times out

Solutions:

• Verify PDF file is not corrupted or password-protected
• Check file size is under the maximum limit (typically 10MB)
• Ensure file is actually a PDF (check MIME type)
• Verify network connection and try again

Recipient Configuration Issues

Symptoms: Recipients not receiving signing invitations

Solutions:

• Verify email addresses are valid and correctly formatted
• Check signing order numbers are sequential (1, 2, 3...)
• Ensure document ID from Step 1 is used correctly
• Verify recipient metadata format is correct

Field Positioning Problems

Symptoms: Signature fields appear in wrong locations

Template-based Solutions:

• Verify anchor text exists in the PDF document
• Check anchor text matches exactly (case-sensitive by default)
• Test with caseSensitive: false if having matching issues
• Use PDF coordinates as fallback if anchors don't work

Coordinate-based Solutions:

• Verify page dimensions match your PDF's actual size
• Check that x,y coordinates are within page boundaries
• Ensure coordinates account for any PDF margins or headers
• Test with different page numbers if multi-page document
• Validate that x + width ≤ pageWidth and y + height ≤ pageHeight

Webhook Integration Issues

Symptoms: Not receiving completion notifications

Solutions:

• Verify webhook URLs are accessible and return 200 OK
• Check webhook configuration in organization settings
• Review webhook delivery history for error details
• Test webhook endpoints with external tools

Debugging Tips

1. Enable request logging: Log all API requests and responses
2. Test step by step: Isolate issues by testing each step individually
3. Use Postman: Import examples and test manually before coding
4. Check network: Verify connectivity to turbodocx.com
5. Validate JSON: Ensure request bodies are valid JSON format

Next Steps

Webhooks - The Next Logical Step

Now that you've integrated the basic signing flow, the next step is setting up webhooks to receive real-time notifications when documents are signed. This eliminates the need for polling and provides instant updates about document status changes.

📖 Learn how to configure Webhooks →

Related Documentation

• TurboSign Setup Guide
• Webhook Configuration
• API Authentication
• Integration Examples

Support

Need help with your integration?

• Discord Community: Join our Discord server for real-time support and discussions
• Documentation: https://docs.turbodocx.com

---

Ready to get started? Follow the step-by-step guide above to integrate TurboSign API into your application and start collecting electronic signatures programmatically!
