Conditional (IF/THEN) Fields

Conditional fields let a document react to what the signer does. A controlling checkbox decides whether one or more dependent fields are shown or unlocked, so signers only fill in the fields that actually apply to them.

A classic example: a reviewer ticks "Request changes", and only then does a text box appear asking them to explain what to change. If they leave the box unticked, the text box never gets in the way.

Two ways a field can react

Every conditional field starts in one of two states and changes when the condition is met:

Behavior	Starting state of the dependent field	When the condition is met
Show	Hidden (left out of the signed PDF entirely)	The field appears
Unlock	Visible but read-only	The field becomes fillable

Use Show when the field is irrelevant unless the box is set (a reason box that only matters if changes are requested). Use Unlock when the field should always be visible for context but must not be edited until the signer opts in (an amount field that stays greyed out until "Override default amount" is ticked).

Which section do you need?

Setting this up by hand in the TurboSign app? → In the app
Building it through the API or an SDK? → With the API and SDKs

Both produce the same result — the app's controls map directly onto the API fields.

In the app

Set up conditional fields while you place fields on a document, on the Assign Fields step of the signature flow. This example rebuilds the reviewer scenario: a checkbox that reveals a "please explain" text box.

Step 1: Open the field editor

Start a new signature request, upload your document, add your recipient, and continue to the Assign Fields step. The field palette is on the right; the document is in the middle.

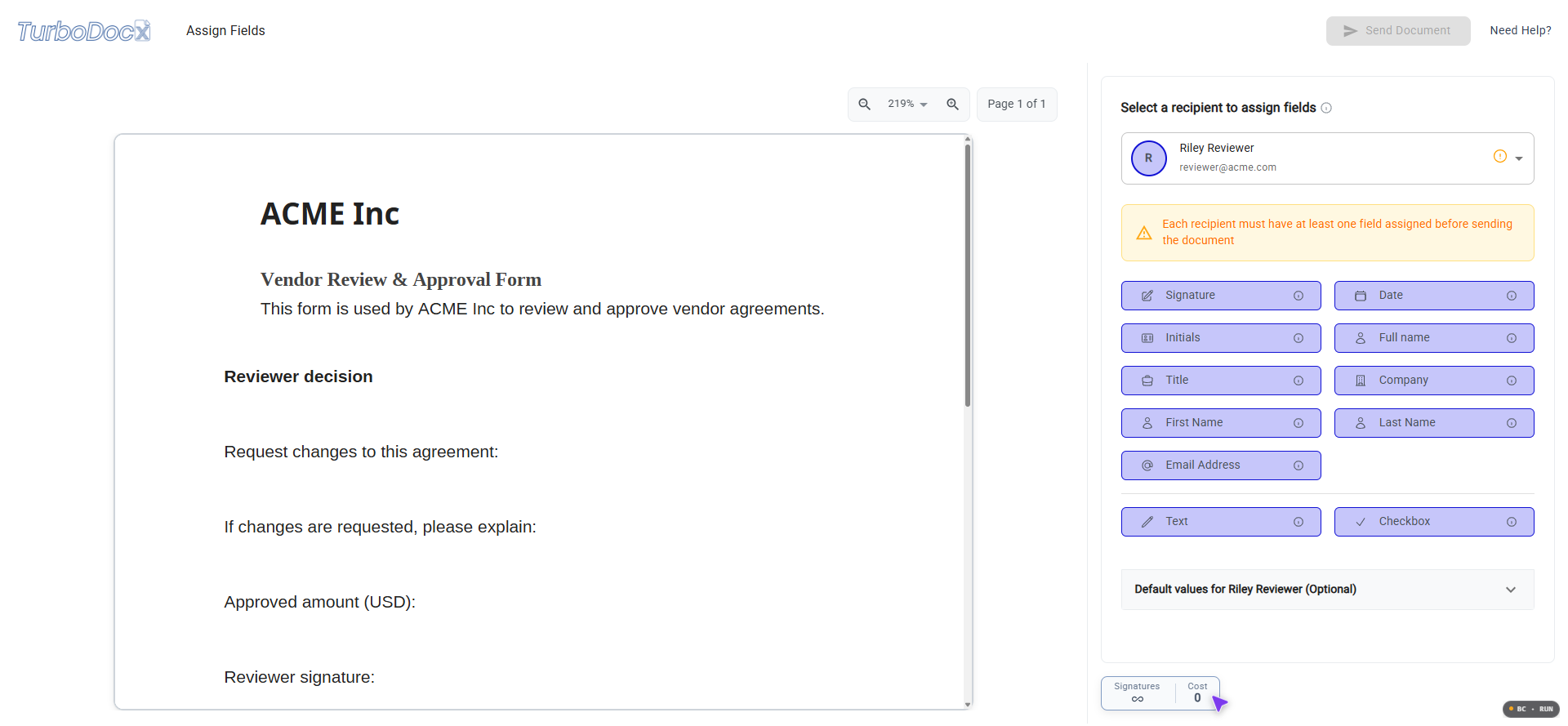

The TurboSign Assign Fields editor with the field palette on the right

Step 2: Add the checkbox and the field it controls

From the palette, drag a Checkbox field onto the document — this is the controlling box. Then drag the field it will control (here, a Text field) onto the document.

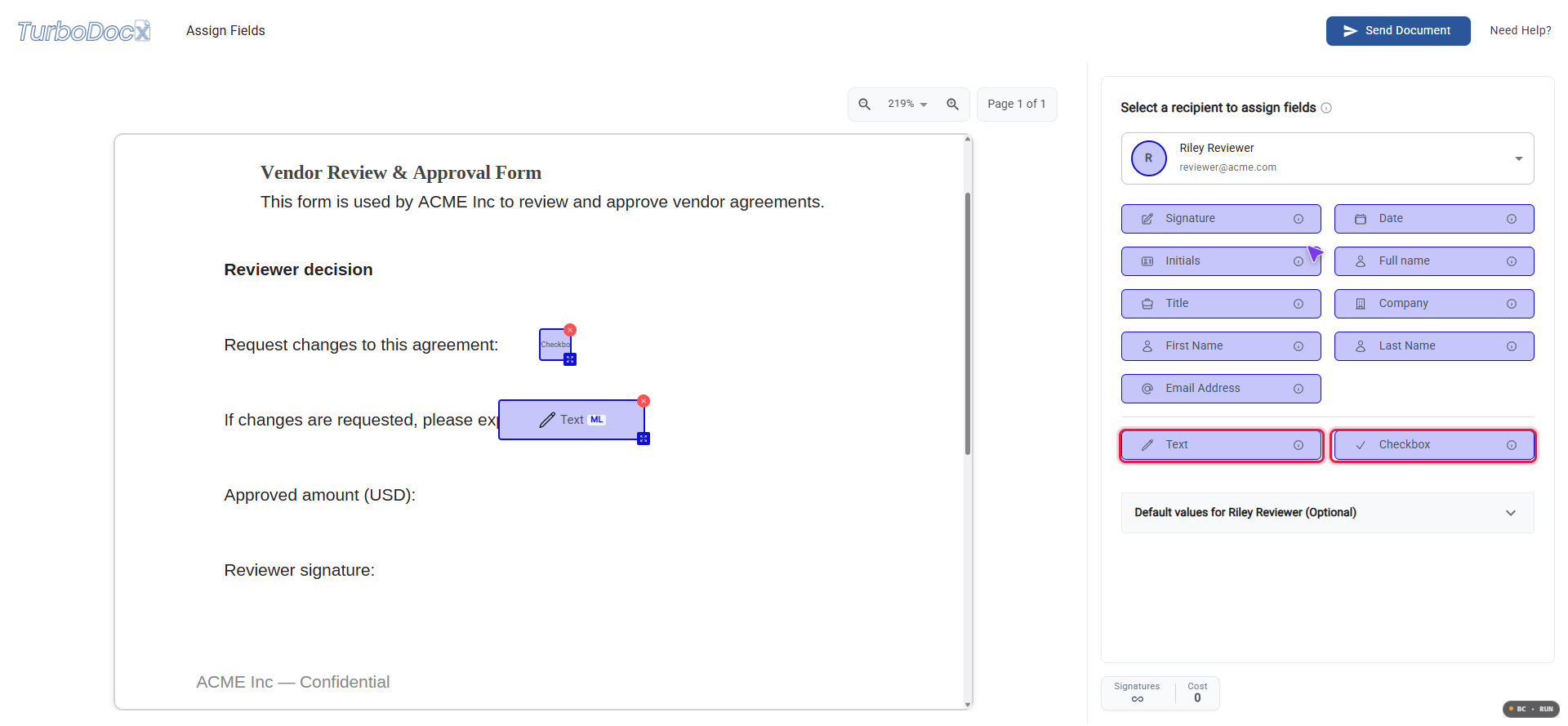

The field palette with the Checkbox and Text fields highlighted

Step 3: Turn on the rule

Click the dependent field (the text box) to open its settings, then open Only show this field sometimes and set the rule:

Which checkbox? — pick the controlling checkbox you just added.
Show it when the box is — choose Ticked or Not ticked.
Until then, this field is — choose Hidden (the field is left out until the condition is met) or Visible, but not fillable (the field shows but can't be typed in yet).

A plain-English summary underneath confirms the rule, for example "This field stays hidden until Checkbox 1 is ticked."

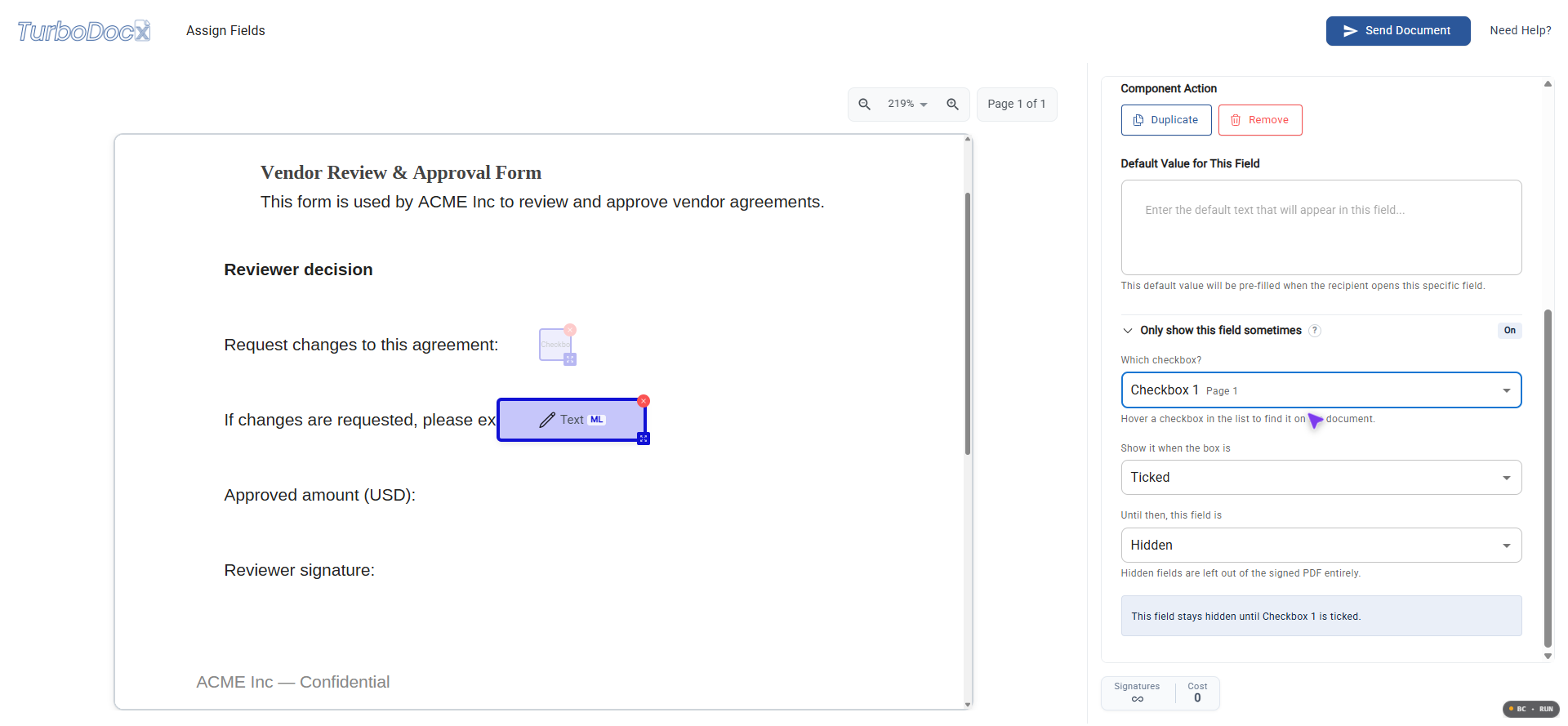

The "Only show this field sometimes" rule builder with the checkbox, condition, and starting-state controls highlighted

Step 4: Send

Finish placing any other fields and send the document. The signer sees the dependent field appear (or unlock) only when they set the controlling checkbox the way your rule specifies.

Keep the checkbox and its dependent fields with the same signer

The controlling checkbox and the fields it controls should belong to the same recipient, so the person ticking the box is the same person who fills in the revealed field.

With the API and SDKs

Conditional logic is expressed entirely through the optional metadata object on a field, so it works anywhere fields are accepted — the single-step Prepare for Signing and Prepare for Review routes and the Bulk API.

How it works

A conditional relationship always has two halves:

A controlling checkbox — a field of type: "checkbox" that carries a stable identifier, metadata.fieldKey.
One or more dependent fields — each carries a metadata.conditional rule whose controllingFieldKey matches the checkbox's fieldKey. The rule names the condition (operator) and what happens when it is met (action).

One checkbox can control any number of dependent fields — give them all the same controllingFieldKey.

The metadata contract

metadata: {
  // On a CONTROLLING checkbox (type: "checkbox"):
  fieldKey: "request_changes",

  // On a DEPENDENT field:
  conditional: {
    controllingFieldKey: "request_changes", // = the checkbox's fieldKey
    operator: "is_checked",                 // "is_checked" | "is_not_checked"
    action: "show"                          // "show" | "unlock"
  }
}

Property	Values	Meaning
`fieldKey`	any non-empty string	Stable id on the controlling checkbox. Dependent fields point at this.
`conditional.controllingFieldKey`	a checkbox's `fieldKey`	Which checkbox this field depends on. Required and must be non-empty.
`conditional.operator`	`is_checked`, `is_not_checked`	The condition evaluated against that checkbox.
`conditional.action`	`show`, `unlock`	What happens to this field when the condition is met.

The action values map onto the two behaviors above: show starts the field hidden, unlock starts it visible but read-only.

Worked example: a checkbox reveals a text field

The reviewer sees a "Request changes" checkbox. Only if they check it does the "Please explain" text field appear.

const fields = JSON.stringify([
  // 1) Controlling checkbox — gets a stable fieldKey
  {
    recipientEmail: "reviewer@acme.com",
    type: "checkbox",
    page: 1,
    x: 100,
    y: 400,
    width: 20,
    height: 20,
    required: false,
    metadata: {
      fieldKey: "request_changes",
    },
  },
  // 2) Dependent text field — HIDDEN until "request_changes" is checked
  {
    recipientEmail: "reviewer@acme.com",
    type: "text",
    page: 1,
    x: 130,
    y: 400,
    width: 300,
    height: 60,
    required: false,
    defaultValue: "",
    metadata: {
      conditional: {
        controllingFieldKey: "request_changes",
        operator: "is_checked",
        action: "show",
      },
    },
  },
]);
formData.append("fields", fields);

When the reviewer checks the box, the text field appears. Uncheck it and the field disappears again.

Worked example: a checkbox unlocks a locked field

Here the amount field is always visible so the signer can see the default, but it stays read-only until they check "Override default amount".

const fields = JSON.stringify([
  // Controlling checkbox
  {
    recipientEmail: "signer@acme.com",
    type: "checkbox",
    page: 1,
    x: 100,
    y: 500,
    width: 20,
    height: 20,
    required: false,
    metadata: {
      fieldKey: "override_amount",
    },
  },
  // Dependent amount field — VISIBLE but LOCKED until the box is checked
  {
    recipientEmail: "signer@acme.com",
    type: "text",
    page: 1,
    x: 130,
    y: 500,
    width: 150,
    height: 30,
    required: false,
    defaultValue: "1000.00",
    metadata: {
      conditional: {
        controllingFieldKey: "override_amount",
        operator: "is_checked",
        action: "unlock",
      },
    },
  },
]);
formData.append("fields", fields);

Reveal a field when a box is cleared

Set operator: "is_not_checked" to invert the logic. For example, an "I do not consent" checkbox can reveal a text field asking the signer to explain, only when consent is not given:

{
  metadata: {
    conditional: {
      controllingFieldKey: "consent",
      operator: "is_not_checked",
      action: "show",
    },
  },
}

Validation and fail-open behavior

The API validates the shape of every conditional rule before creating the document. A malformed rule is rejected with HTTP 400 and the type InvalidConditionalRule. A rule is malformed when:

operator is anything other than "is_checked" or "is_not_checked", or
action is anything other than "show" or "unlock", or
controllingFieldKey is missing or empty.

The response body names the offending field and the exact problem:

{
  "message": "Field 2: metadata.conditional.operator must be one of: is_checked, is_not_checked",
  "type": "InvalidConditionalRule"
}

A well-formed rule with a wrong key fails open

The API does not verify that a rule's controllingFieldKey actually matches a checkbox in the request. If it doesn't match any checkbox's fieldKey, the rule fails open: the dependent field stays fully visible and editable, exactly as if it had no rule, and no error is returned. A typo in controllingFieldKey therefore silently disables the condition instead of blocking the send. Always confirm each dependent field's controllingFieldKey exactly matches an existing checkbox's fieldKey.

Tips

The controlling field must be a checkbox (type: "checkbox"). Only checkboxes can hold a controlling fieldKey.
Keep fieldKey values short, stable, and unique within a document (request_changes, override_amount, consent).
A dependent field that is required: true but hidden via action: "show" is only enforced once it becomes visible — don't rely on a hidden required field to block completion.
The controlling checkbox and its dependent fields should generally belong to the same recipient so the same signer both toggles the box and fills the revealed field.

How the app maps to the API

The app's rule builder and the API metadata.conditional object are the same thing in two forms:

In the app	In the API
Which checkbox?	`controllingFieldKey` (the checkbox's `fieldKey`)
Show it when the box is → Ticked	`operator: "is_checked"`
Show it when the box is → Not ticked	`operator: "is_not_checked"`
Until then, this field is → Hidden	`action: "show"`
Until then, this field is → Visible, but not fillable	`action: "unlock"`

TurboSign API Integration — the full field reference, including the metadata object.
Bulk API Integration — conditional metadata works in bulk batches too.
